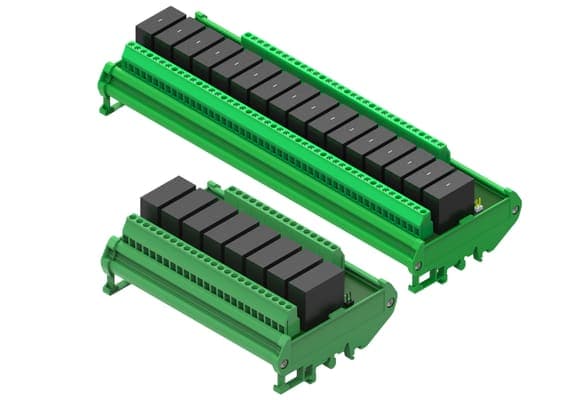

Relay Boards

In industrial automation and control systems, relay boards play a critical role in enabling safe and efficient switching between control signals and electrical loads. Standard 24V DC Relay Boards are designed to provide reliable digital input interfacing while ensuring stable performance in industrial environments. Built with robust electronic components and a carefully engineered PCB design, these relay boards deliver dependable switching functionality for automation panels, machinery control systems, and electrical equipment.

The standard digital input relay module is designed to interface control signals with output devices such as motors, alarms, solenoids, and other electrical loads. By operating on 24V DC, it integrates seamlessly with common industrial control systems including PLCs, automation controllers, and panel circuits. This makes it an ideal solution for switching and signal control in a wide range of industrial applications.

The relay board is manufactured using a double-sided PCB, which improves circuit stability and ensures reliable electrical connections. The use of high-quality relays further enhances the durability of the module, allowing it to perform consistently even during continuous operation. The board is designed to support direct loads up to 4A, making it suitable for a variety of industrial control tasks.

To accommodate different control system requirements, the relay board supports both NPN and PNP input configurations. Users can easily select the required mode using a jumper selection, providing flexibility when integrating the board with different PLCs and digital control systems. This adaptability simplifies installation and ensures compatibility across multiple automation setups.

The relay board incorporates a freewheeling diode across the relay coil, which protects the circuit from back electromotive force (Back EMF). This feature helps prevent voltage spikes that may occur when the relay coil is switched off, thereby protecting sensitive electronic components and improving the overall reliability of the system.
